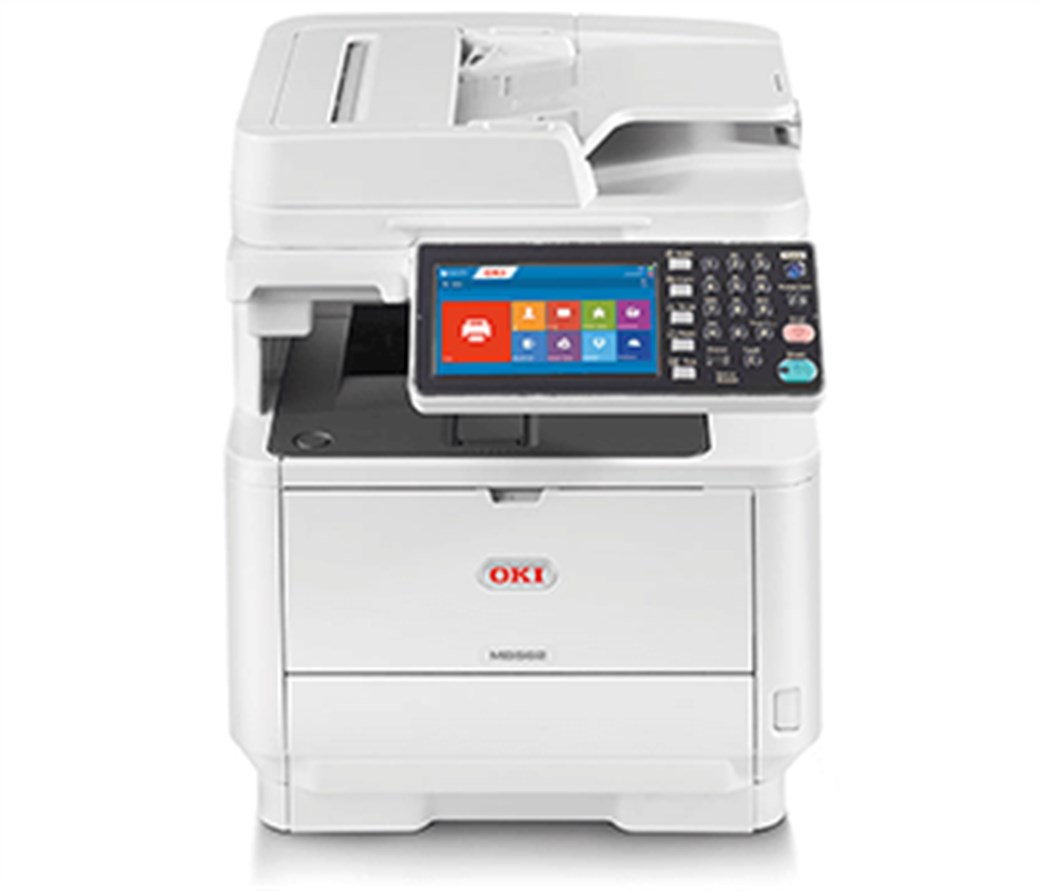

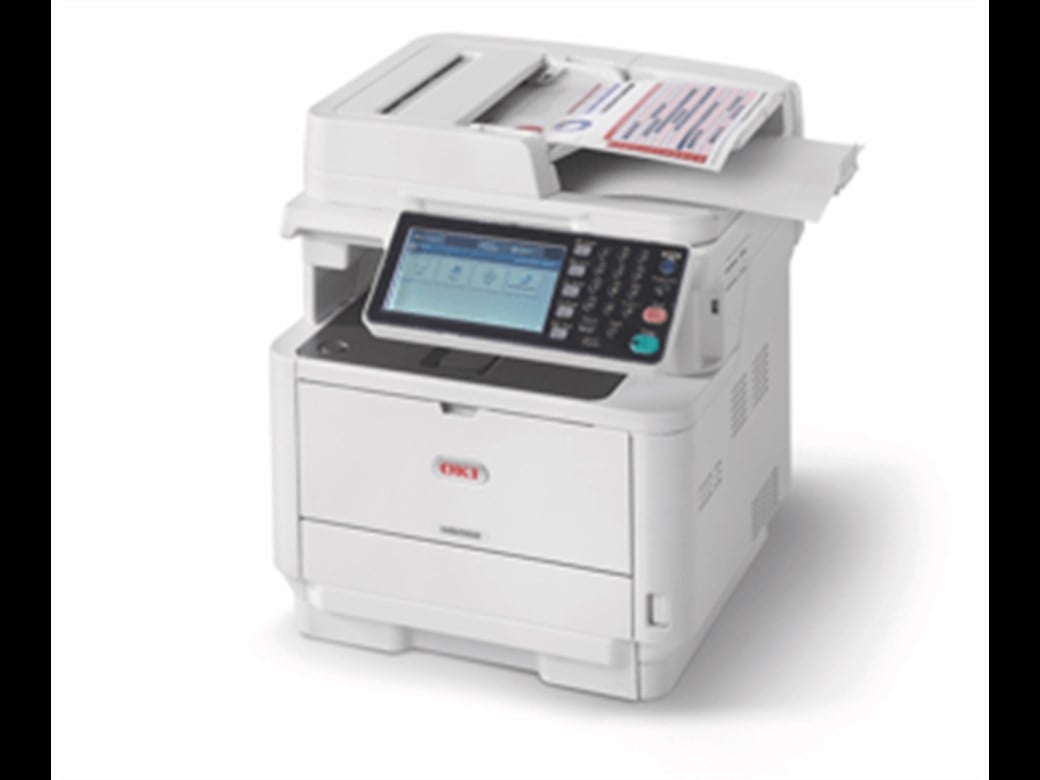

Oki MB562DNW Yazıcı/Tarayıcı/Fotokopi/Faks Çok Fonksiyonlu Lazer Yazıcı WI_FI (ST04879)

Type

Desktop

Scanning Method

Color CIS

Printing Method

Digital LED Electrophotographic Printing Method

Copy Density Adjustment

7 levels (Manual)

Input Capacity

Tray 1 : 530 sheets
(Optional)Tray 2 : 530 sheets
Multi-purpose tray : 100 sheets

Scanning Resolution

Up to 600 x 600 dpi

Writing Resolution

Up to 600 x 600 dpi

Acceptable Original

Sheet

Original Size

Flatbed: A4, A5, A6, B5, Letter, Executive;
ADF: A6, B5, A5, A4, Letter, Legal 13, Legal 13.5, Legal 14, Executive

Copy Paper Size

A6, B5, A5, A4, Letter, Legal 13, Legal 13.5, Legal 14, Executive

Copy Scaling

25 – 400 %

Maximum Copies

99 sheets

Copy Speed

A4 37 cpm

First Copy Out Time

Approx. 10.0 seconds

Warm-up Time

Approx. 60.0 seconds from power-on
Approx. 17.0 seconds from power save

Power Source

Single phase 220 - 240 VAC ±0%, 50/60 Hz ±2%

Power Consumption

Operating: Max. 950W / Ave. 660W
Idle: 95W
Power Save: 12.0W
Deep Sleep: 1.9W
Auto-Off: 0.5W

Memory (Std./Max.)

512MB/512MB

Noise Level

Operating :Approx. 56 dBA
Idle: < 30 dBA
Power Save: < 7 dBA or Background level

Operating Environment

Operating: 10 - 32 °C, 20 - 80 %RH
Storage: -10 - 43 °C, 10 - 90 %RH
No condensation

Dimensions(WxDxH)

427 x 478 x 496 mm

Weight(includes supplies)

Approx. 22.0 kg

Duty Cycle

Recommended: 5,500 pages/month
Maximum: 100,000 pages/month

In the Box

Image Drum x 1, Starter toner cartridge x 1, DVD-ROM, Telephone Cable, Ferrite Core, Power cable

Print Speed

A4 45 ppm

First Print Out Time

Approx. 5.0 seconds

Printing Resolution

1200 x 1200 dpi

Interface

1000BASE-T/100BASE-TX/10BASE-T, USB 2.0 (High Speed), Wireless LAN (IEEE802.11a/b/g/n)

Protocol

TCP/IP

Printer Language

PostScript 3 emulation, PCL 5e emulation, PCL 6 (XL) emulation

Supported OS

Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Vista, Windows Vista x64, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2008 x64, Windows Server 2003, Windows Server 2003 x64, OS X 10.9, OS X 10.8, OS X 10.7, Mac OS X 10.6, Linux

Memory (Std./Max.)

512MB/512MB

Font

PCL emulation 87 scalable fonts, 4 bitmap fonts, PostScript emulation 136 fonts

Paper Type

Plain, Label, Envelope

Paper Size

A4, A5, B5, A6, Letter, Legal 13, Legal 14, Legal 13.5, Executive, Custom Size: Width 86-216 mm x Length 140-1320 mm

Paper Weight

Tray 1 : 80 gsm
(Optional)Tray 2 : 80 gsm
Multi-purpose tray : 80 gsm

Input Capacity

Tray 1 : 530 sheets
(Optional)Tray 2 : 530 sheets
Multi-purpose tray : 100 sheets

Output Capacity

Face Down : Max. 150 sheets

Scan Resolution

Max. 600 x 600 dpi

Scan Speed

Max. 10 ipm Color, 30 ipm mono

Interfaces

USB 2.0 (High Speed) Host, 1000BASE-T/100BASE-TX/10BASE-T, Wireless LAN (IEEE802.11a/b/g/n)

Supported Protocol

SMTP, FTP(S), HTTP(S), CIFS, TWAIN, WIA1.0, WIA2.0, ICA

Output Format

PDF, High compression PDF, Secure PDF, JPEG, TIFF, XPS

Driver

TWAIN, WIA1.0(Windows XP), WIA2.0(Windows Vista or later), ICA(Mac OS X 10.6 or later)

Applicable Line

PSTN, PBX

Interface

RJ-11 x 2 (Line, Tel)

Transmission Resolution

Normal: 8 dots/mm x 3.85 lines/mm
Fine/Photo: 8 dots/mm x 7.7 lines/mm
Extra Fine: 8 dots/mm x 15.4 lines/mm

Communication Speed

G3: 14.4kbps, Super G3: 33.6kbps

Encoding Method

MH, MR, MMR, JBIG

Communication Mode

ITU-T G3, Super G3

Transmission Original Size

Max. Legal 14, Length 355 mm

Paper Size

Max. Legal 14, Min. Letter

Transmission Time

Approx. 2.0 sec. / page

Memory

Max. 200 pages (4MB)

Other Function

Duplex scanning, LDAP, Speed Dial(300 locations), PC Fax, 1 touch Dial(16 locations)

Type

Reverse Automatic Document Feeder (RADF)

Original Size

A4, A5, A6, B5, Letter, Legal 13, Legal 13.5, Legal 14, Executive

Original Weight

60 - 105 gsm

Loading Capacity

Max. 50 sheets
